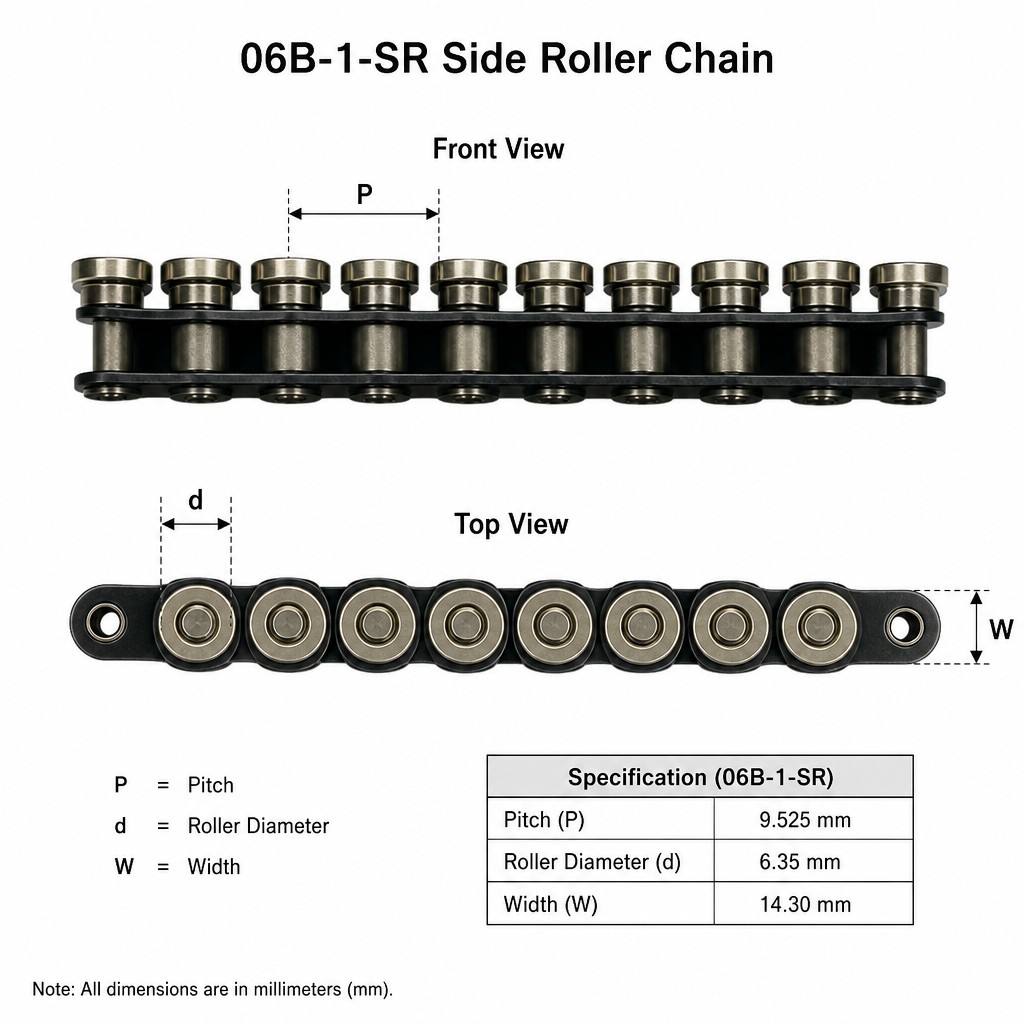

ISO9001 steel 06B-1-SR side roller chain

Reliable Side Roller Chains for Industrial Conveying Systems

Tianjin Haorongshengye Electrical Equipment Co., Ltd. supplies Side Roller Chains designed for industrial conveying, material handling, assembly lines, and automated transport systems. With an extended roller structure positioned on the side of the chain, side roller chains provide both reliable power transmission and smooth material conveying.

Compared with standard roller chains, side roller chains are especially suitable for applications where products need to be supported, positioned, transferred, or conveyed along a production line. They are widely used in industrial conveyor systems, packaging machinery, production lines, material handling equipment, and other customized conveying applications.

What Is a Side Roller Chain?

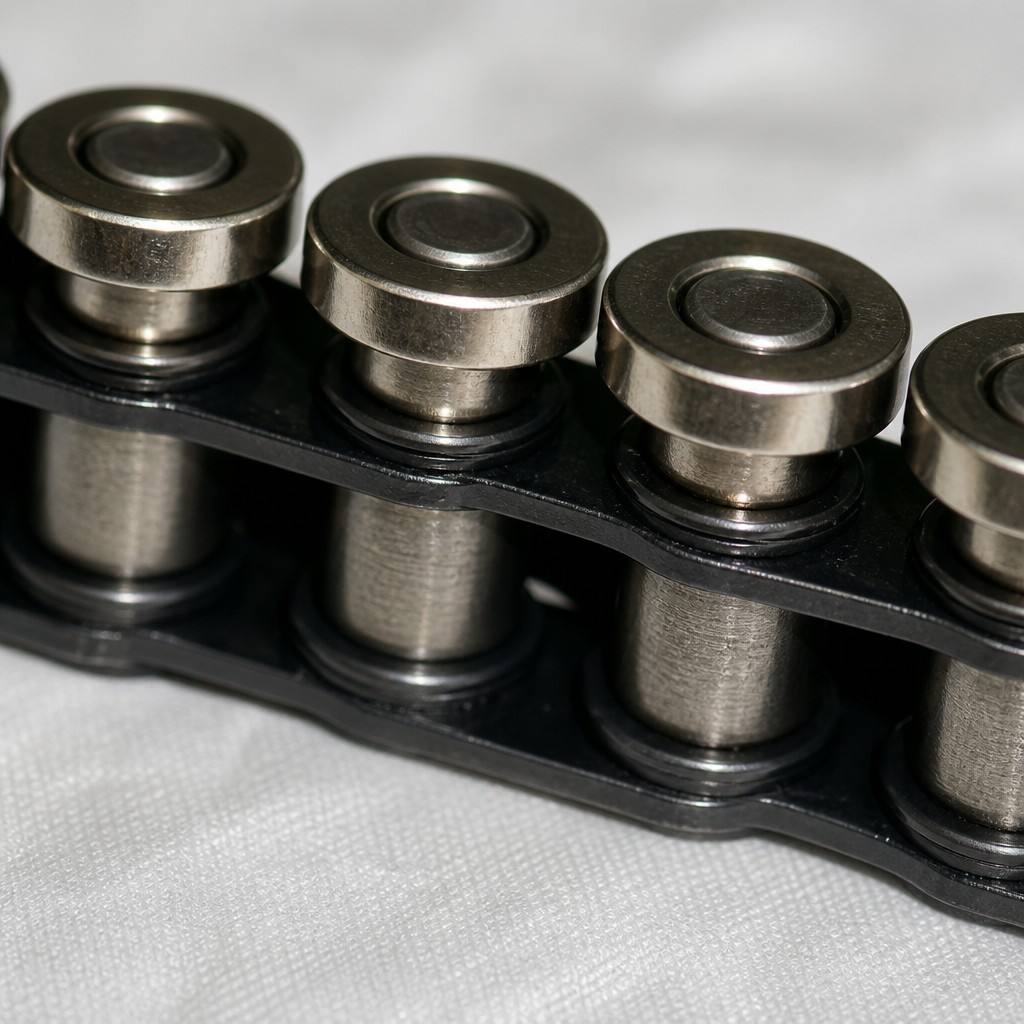

A side roller chain is a specialized conveyor chain equipped with rollers extending from one or both sides of the chain. The side rollers can directly contact conveyor rails, guide tracks, pallets, fixtures, or conveyed products.

This structure allows the chain to perform multiple functions within one system, including:

· Power transmission

· Product conveying

· Side support

· Guide and positioning

· Pallet and fixture transportation

· Automated material handling

The side roller configuration can be customized according to the requirements of different conveyor systems, including roller diameter, roller position, attachment design, chain pitch, and overall dimensions.

Efficient Material Conveying

Side rollers provide a smooth rolling interface between the chain and the conveyor structure. This can reduce sliding friction and help achieve stable product movement, particularly in continuous conveying applications.

Flexible Configuration

Different side roller arrangements can be supplied according to equipment requirements. Depending on the application, rollers may be installed on one side or both sides of the chain.

Compatible with Conveyor Systems

Side roller chains can be integrated into various conveyor structures and automated production lines. They can work with guide rails, sprockets, supports, fixtures, and other conveyor components.

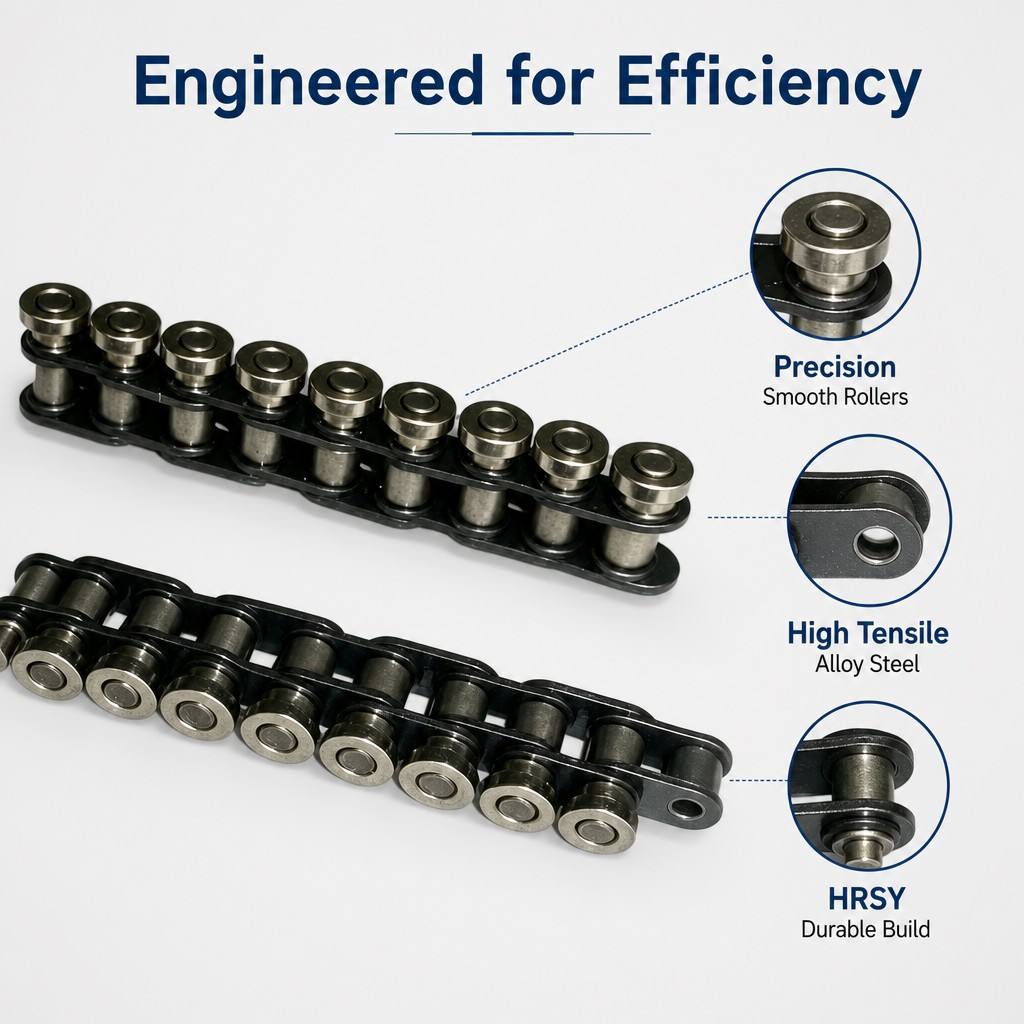

Durable Construction

Tianjin Haorongshengye Electrical Equipment Co., Ltd. manufactures side roller chains using suitable steel materials and precision manufacturing processes to provide reliable wear resistance, dimensional stability, and mechanical performance for industrial applications.

Custom Attachments Available

For specialized conveying applications, chain attachments can be designed according to the customer's equipment. Customized options may include extended pins, plates, special attachments, roller configurations, and other connecting structures.

Side roller chains are commonly used in:

· Industrial conveyor systems

· Assembly lines

· Automated production lines

· Material handling equipment

· Packaging machinery

· Pallet conveyors

· Bottle and container conveying systems

· Food processing machinery

· Automotive production lines

· Logistics and sorting equipment

· Special-purpose conveyor machinery

The appropriate chain configuration should be selected according to load, conveying speed, operating environment, center distance, sprocket arrangement, and working cycle.

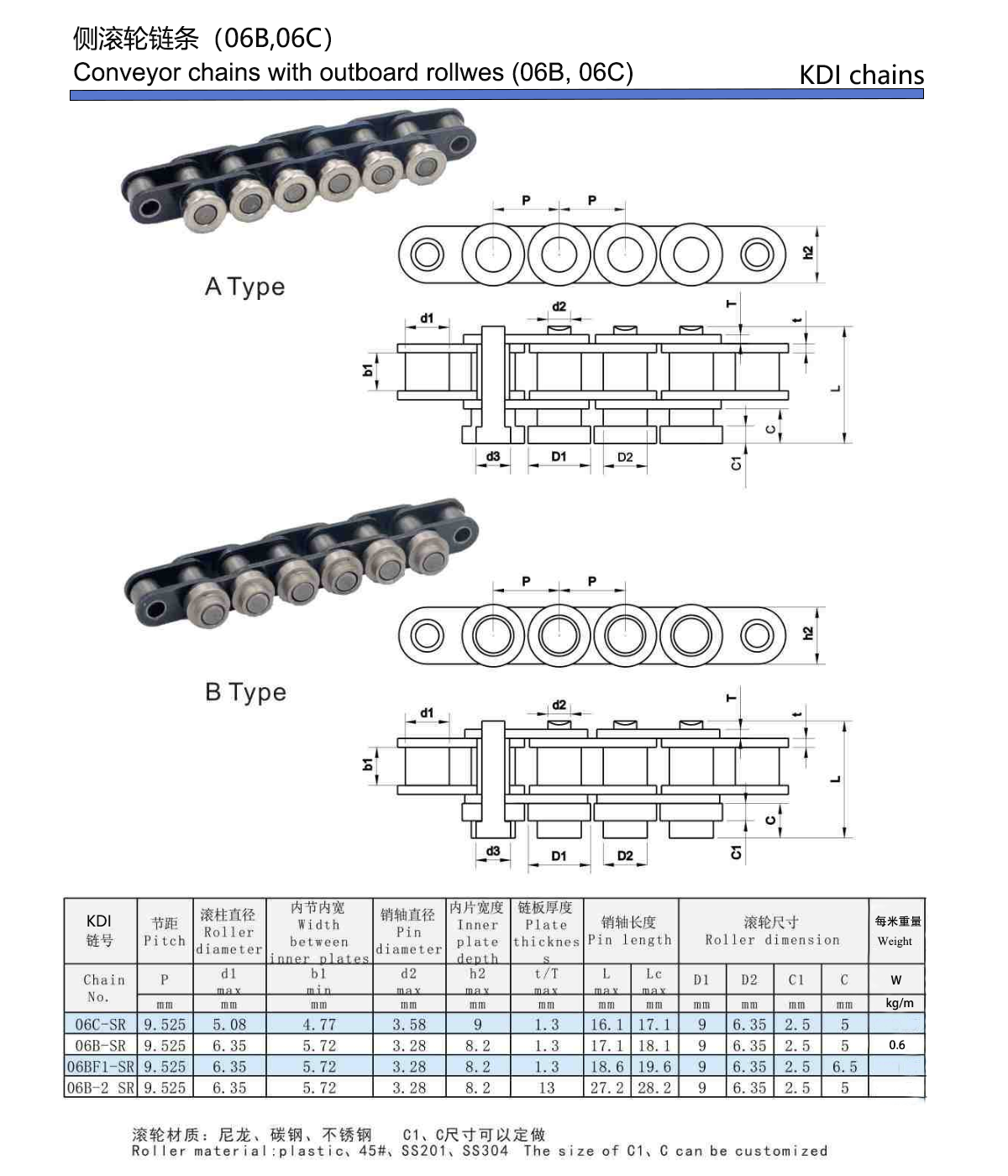

Side Roller Chain Selection

Selecting the correct side roller chain is important for achieving stable operation and long service life. Before placing an order, we recommend confirming the following technical parameters:

For applications involving heavy loads, frequent starts and stops, high-speed conveying, or harsh environments, the chain should be selected based on the actual working conditions rather than chain dimensions alone.

Standard and Customized Solutions

Tianjin Haorongshengye Electrical Equipment Co., Ltd. can provide side roller chain solutions for both standard industrial applications and customized conveyor equipment.

Our technical team can assist customers in selecting the appropriate:

Chain Pitch → Roller Diameter → Roller Arrangement → Attachment → Material → Surface Treatment → Chain Length

Customized specifications can be developed according to drawings, samples, technical data, or existing equipment requirements.

Why Choose Tianjin Haorongshengye?

Professional Industrial Chain Supplier

We focus on industrial chains, conveyor chains, sprockets, and related power transmission components for international customers.

OEM & Customized Manufacturing

We support customized chain dimensions, roller configurations, attachments, materials, and other specifications based on customer requirements.

Application-Oriented Technical Support

Rather than supplying only individual chain components, we consider the complete operating conditions of the conveyor system to help customers select a suitable chain solution.

Export-Oriented Quality Control

Our products are manufactured for industrial applications and international markets, with attention to dimensional accuracy, assembly quality, surface finish, and consistency between production batches.

Order & Customization

If you are looking for a Side Roller Chain Manufacturer or Supplier, Tianjin Haorongshengye Electrical Equipment Co., Ltd. can provide standard and customized solutions for industrial conveying and material handling applications.

Please send us your chain drawing, model number, dimensions, application requirements, or product sample. Our team can evaluate the specifications and recommend a suitable side roller chain for your equipment.
