Core Selling Points
· Teeth ground after heat treatment - removes hardening distortion for accurate tooth geometry.
· Accuracy DIN 5 or DIN 6 for positioning over long travel.
· Spur or helical, module 1 to 10.
· Joinable sections for tracks of any length; matching precision pinions available.
· Robot 7th axis (robot transfer units)
· Ground rails for welding and palletising robots
· Long-travel gantries in automated cells
· Machine tending lines serving several machines
A 7th axis moves a whole industrial robot along a floor track so one robot can serve several stations. The carriage carries the robot, a servo motor and gearbox, and a pinion that drives on a rack fixed to the track. Any rack error appears directly as a position error at the robot base.
Hardening improves wear resistance but distorts the rack slightly. A ground rack is hardened first and then ground, so the final tooth form and pitch are produced on hardened steel. This is why ground racks reach DIN 5 and DIN 6, while milled racks normally sit at DIN 8 and DIN 9.
On long tracks, fewer joints mean less accumulated error: use the longest sections the transport and installation allow, and set every joint with a gauge.
| Item | Value |
| Tooth form | Spur or helical |
| Module | M1-M10 |
| Accuracy grade | DIN 5 / DIN 6 |
| Material | C45, 42CrMo, 16MnCr5, 20CrMnTi |
| Heat treatment | Induction hardening or carburising, by material |
| Tooth finishing | Precision grinding |
| Standard lengths | 500 / 1000 / 1500 / 2000 mm; custom available |
| Mounting | Standard or customised holes and dowel holes |
| Matching parts | Pinions, gearboxes, lubrication components on request |

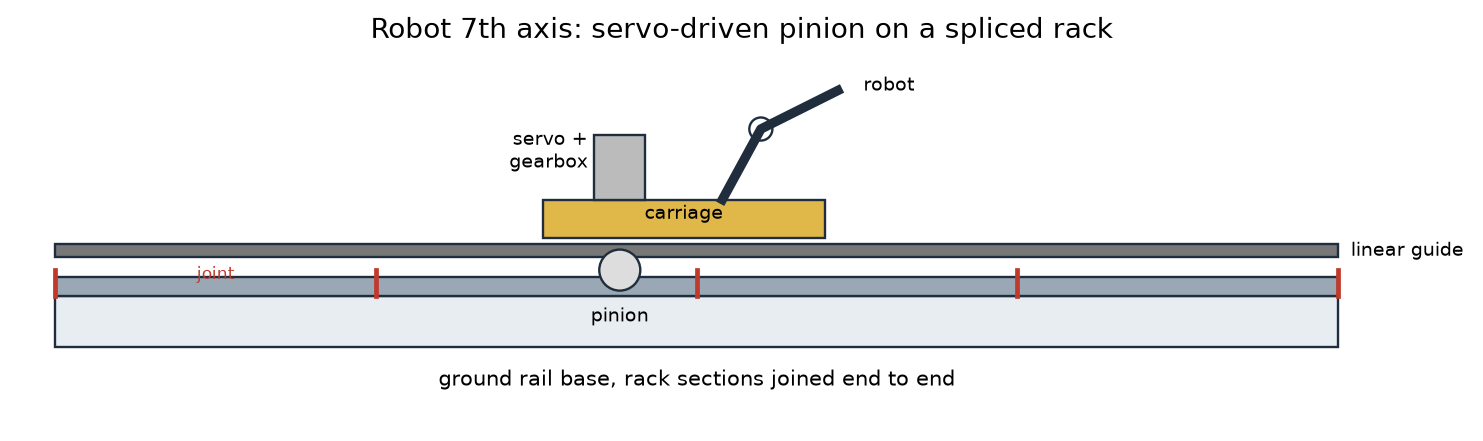

Carriage, pinion and spliced rack on a robot ground rail

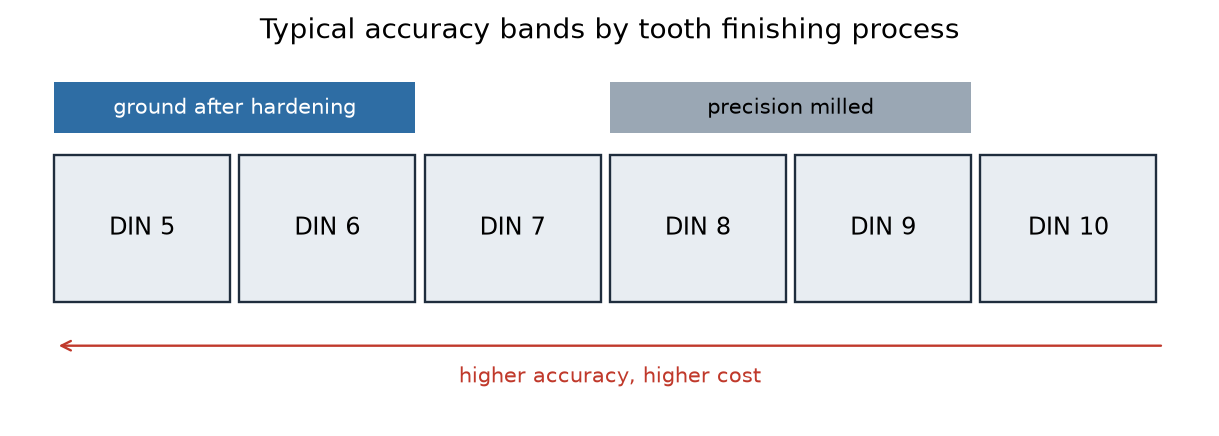

Typical accuracy band by process: ground DIN 5-6, milled DIN 8-9
· Ground on hardened steel for stable accuracy.
· Spur and helical in the same module range.
· Racks, pinions and mounting parts from one supplier.
· OEM production to drawing.
Applicable Industries
Robot integration, automotive welding lines, palletising, machine tending, automated warehousing.
For drawings, samples or a quotation, send us your rack, pinion or gear specification and quantity.
