OEM PU Self tracking timing belts

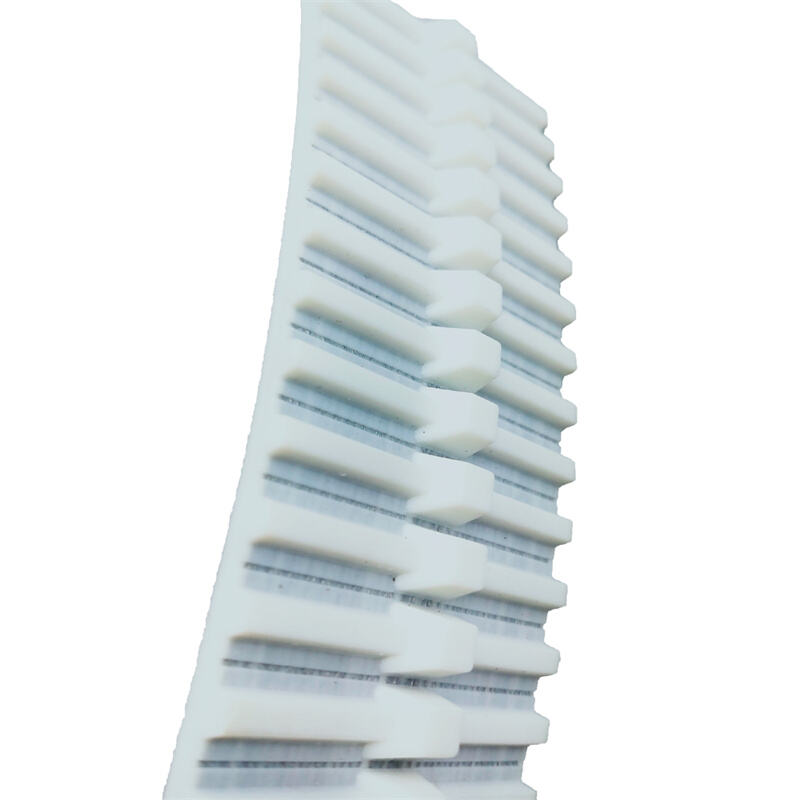

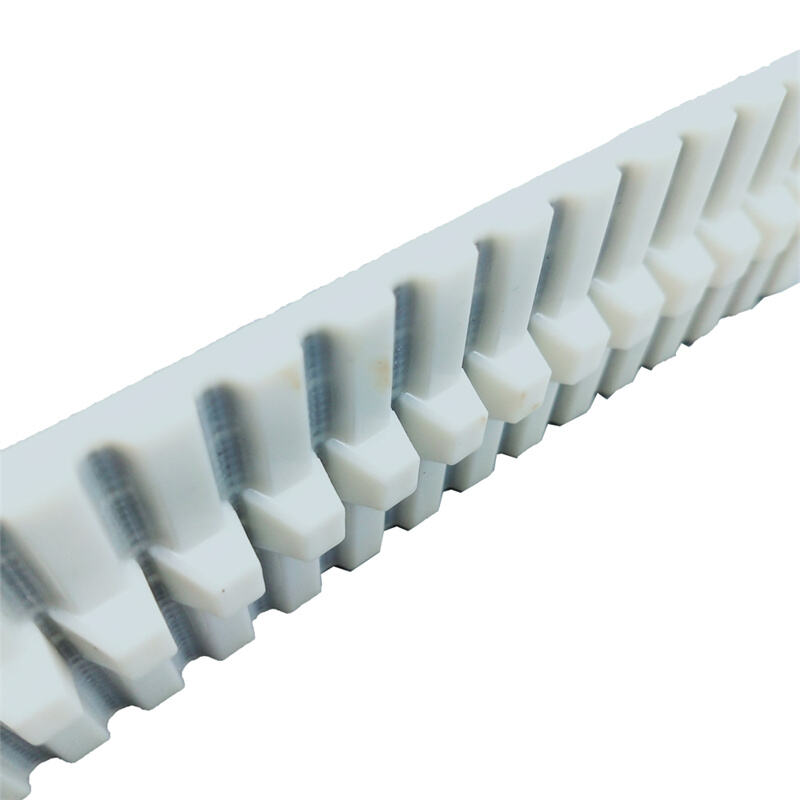

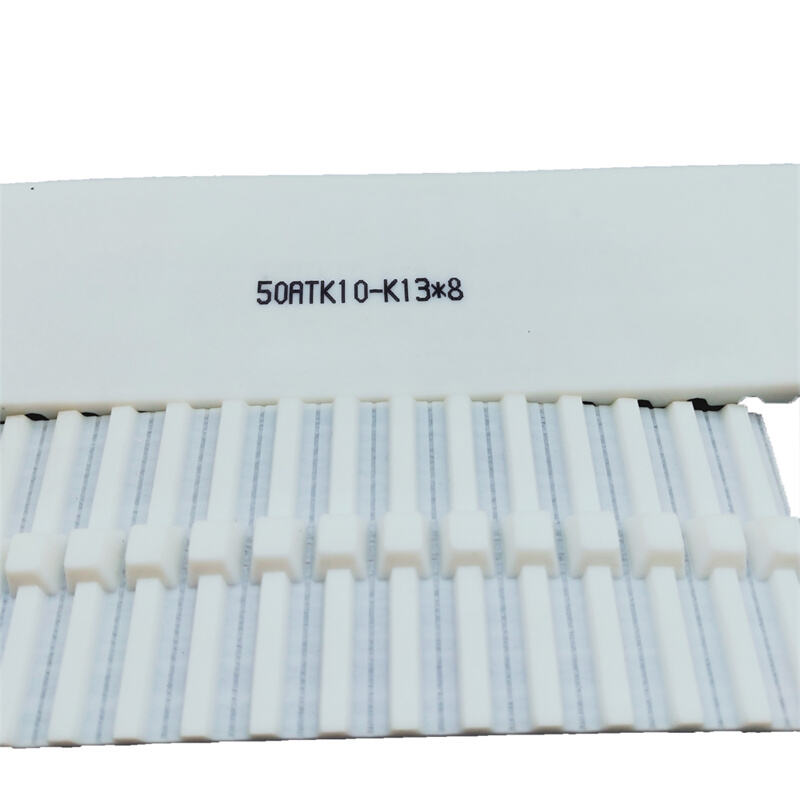

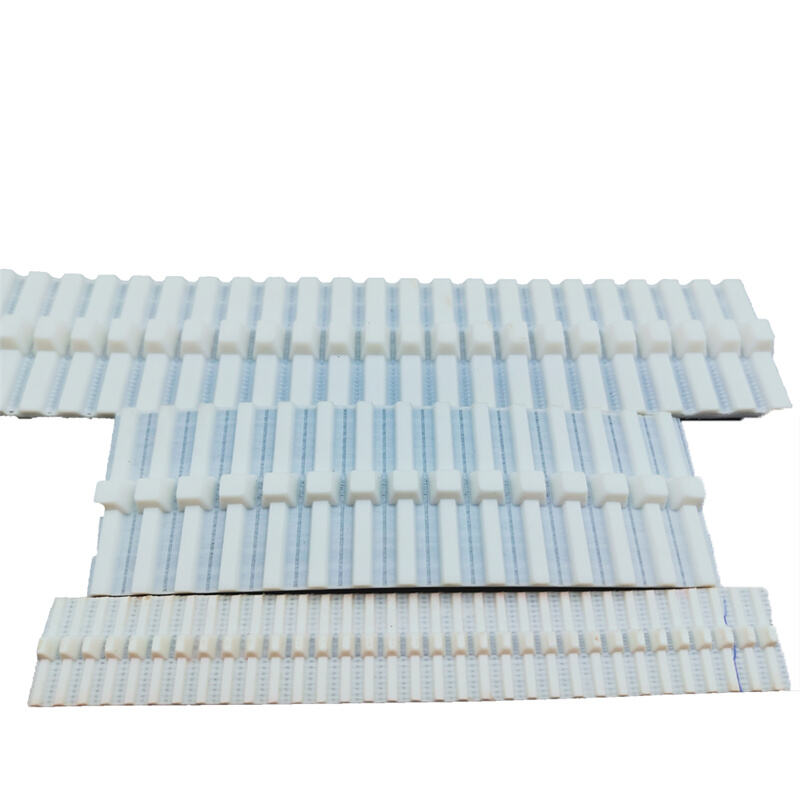

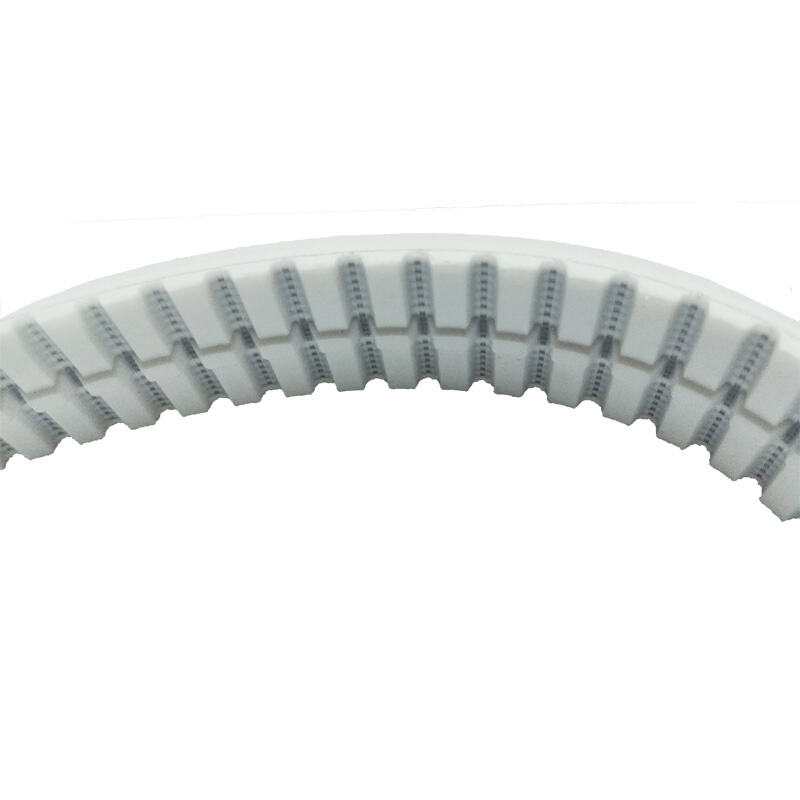

Eliminate belt tracking issues and edge wear in your precision linear drives with our self-tracking timing belts, also known as center guide belts or V-guide belts. Engineered with an integrated continuous guide profile on the back or bottom surface, these belts automatically maintain centered alignment on matching grooved pulleys without external flanges or复杂的 tracking systems. Ideal for automated guided vehicles (AGVs), medical imaging equipment, 3D printers, pick-and-place robots, and conveyor systems, our self-tracking belts reduce maintenance downtime, prevent edge fraying, and ensure consistent positioning accuracy over thousands of operating hours.

Integrated Tracking Mechanism Prevents Belt Migration: The continuous thermoplastic polyurethane (TPU) guide rib or fiber-reinanced profile engages positively with a grooved pulley surface [citation:0]. This self-centering action eliminates lateral belt movement—a common failure mode in flange-based systems—and prevents edge abrasion against guardrails.

Simplified Pulley Design Reduces Component Cost: Because the belt tracks itself, pulleys require no costly machined flanges or complex alignment fixtures. Standard flat or timing pulleys with single matching groove suffice, lowering both initial system cost and spare parts inventory.

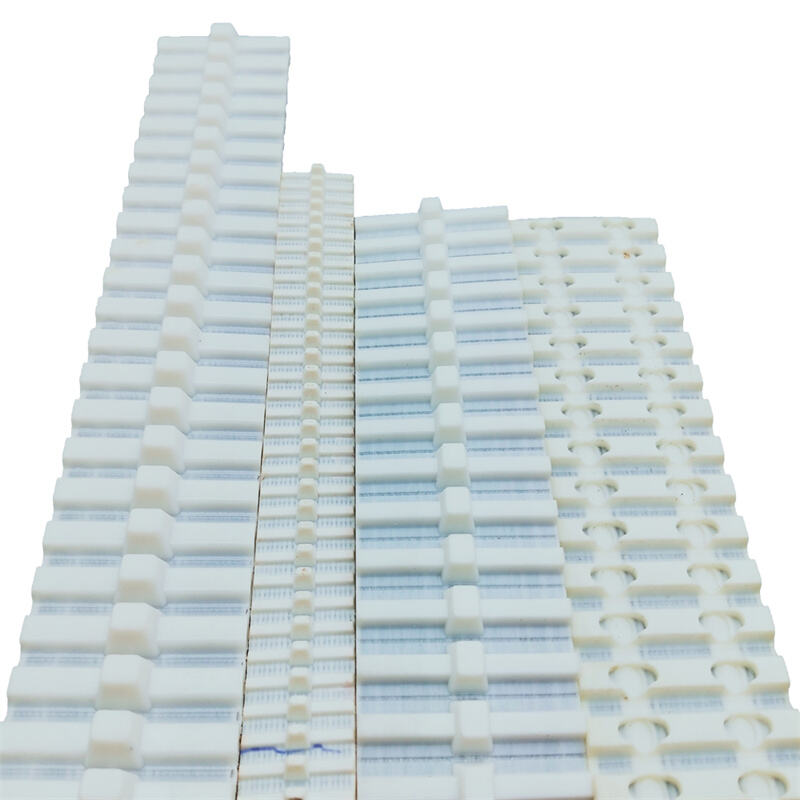

Backside or Bottom Guide Options for Design Flexibility: Available with guide rib on belt back (for external tracking) or on tooth side (for internal engagement inside closed frames). Rib profiles include round, trapezoidal, or custom cross-sections to match your existing or planned pulley grooves.

Maintenance-Free Operation in Dusty or Clean Environments: Without flange edges where debris accumulates, self-tracking belts operate reliably in woodworking, food processing, electronics assembly, and cleanrooms. The smooth guide surface also reduces noise and vibration compared to flanged pulley systems.

Our self-tracking timing belts are manufactured under ISO9001:2015 certified processes. Materials comply with RoHS and REACH directives. For food processing applications, we offer FDA-compliant polyurethane belts with food-grade tensile cords. Stainless steel or anti-static cords available for medical or explosive environments. We provide full material certificates and tensile test reports upon request. Belts meet tooth profile accuracy per ISO 13050 and DIN 7721.

We offer a 12-month warranty against manufacturing defects, including guide rib separation, tooth shearing, or premature cord failure under normal operating conditions. Our technical support team provides online assistance for groove dimension verification, belt length calculation, and tensioning recommendations to ensure optimal self-tracking performance. For OEM projects, we supply pre-production samples for approval and can manufacture custom rib profiles with short lead times. We maintain stock of standard profiles (T5, T10, AT5, AT10, HTD 5M) with round backside guides for rapid dispatch. For any performance issues, our clear return and replacement policy minimizes your production downtime. We also offer custom endless welding and rib extrusion services for volume orders.
