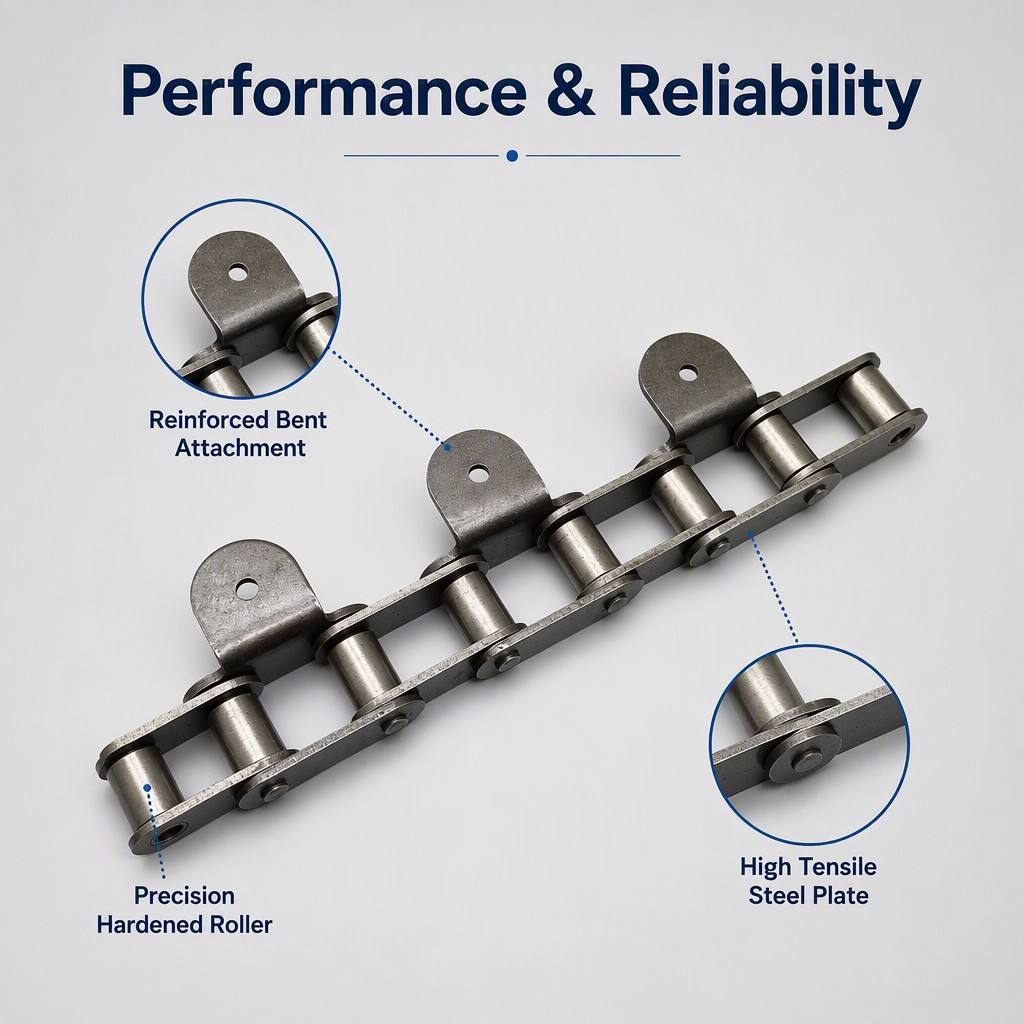

Our sugar mill conveyor chain is a heavy-duty industrial chain designed for continuous conveying and material handling in sugar processing plants. Its attachment-style construction enables the chain to carry, guide and transfer bulk materials through demanding production environments, including cane preparation, feeding and intermediate conveying systems.
The chain is engineered around a 76.2 mm pitch and is available in several compatible chain numbers, including 09060, 09061, 1796, GC09063, SS1131 and DN2184. Different dimensional configurations allow equipment manufacturers and maintenance teams to select the most suitable option for their conveyor design.
| Feature | Description |
| Heavy-duty conveying design | Suitable for continuous material handling in industrial sugar mill equipment. |
| Standard 76.2 mm pitch | Supports compatibility with conveyor layouts and sprocket arrangements designed for this pitch. |
| Attachment configurations | A, B, C and D attachment forms are illustrated in the reference drawing for different installation requirements. |
| Multiple dimensional options | Available widths, hole diameters and attachment dimensions accommodate a range of machinery designs. |
| Custom engineering support | We can review drawings and application requirements for OEM or replacement-chain solutions. |
The following dimensions are transcribed from the supplied reference table. All dimensions are in millimetres. Please confirm the final chain number, attachment form and drawing revision before placing a production order.
| Chain No. | B | F | W | E | d | T |
| 09060 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| 09061 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| 1796 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| GC09063 | 76.2 | 63.5 | 83 | 45 | 20 | 15.3 |
| SS1131 | 76.2 | 65.88 | 91.28 | 50.8 | 17.46 | 15.48 |
| DN2184 | 76.2 | 66.7 | 92.1 / 88.74 | 50.8 / 44 | 21 | 15 |
Dimension definitions:
B = pitch;
F = attachment-related dimension;
W = overall width;
E = attachment spacing/position dimension;
D = attachment hole diameter;
T = attachment thickness, subject to the supplied drawing convention.

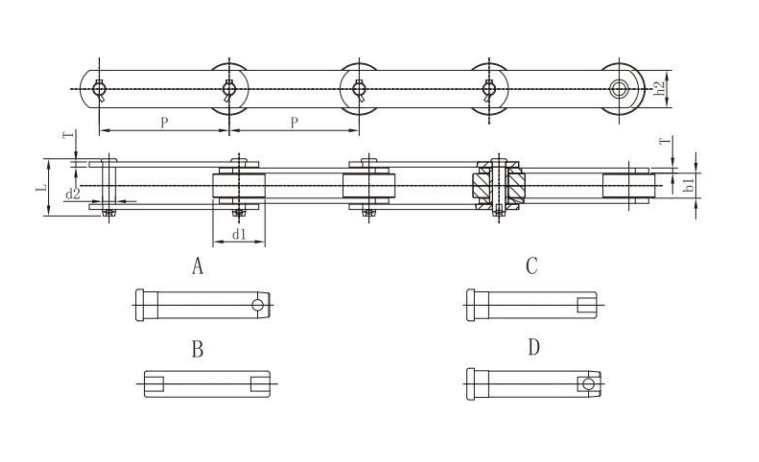

Reference structure drawing showing the chain geometry and attachment forms A, B, C and D.

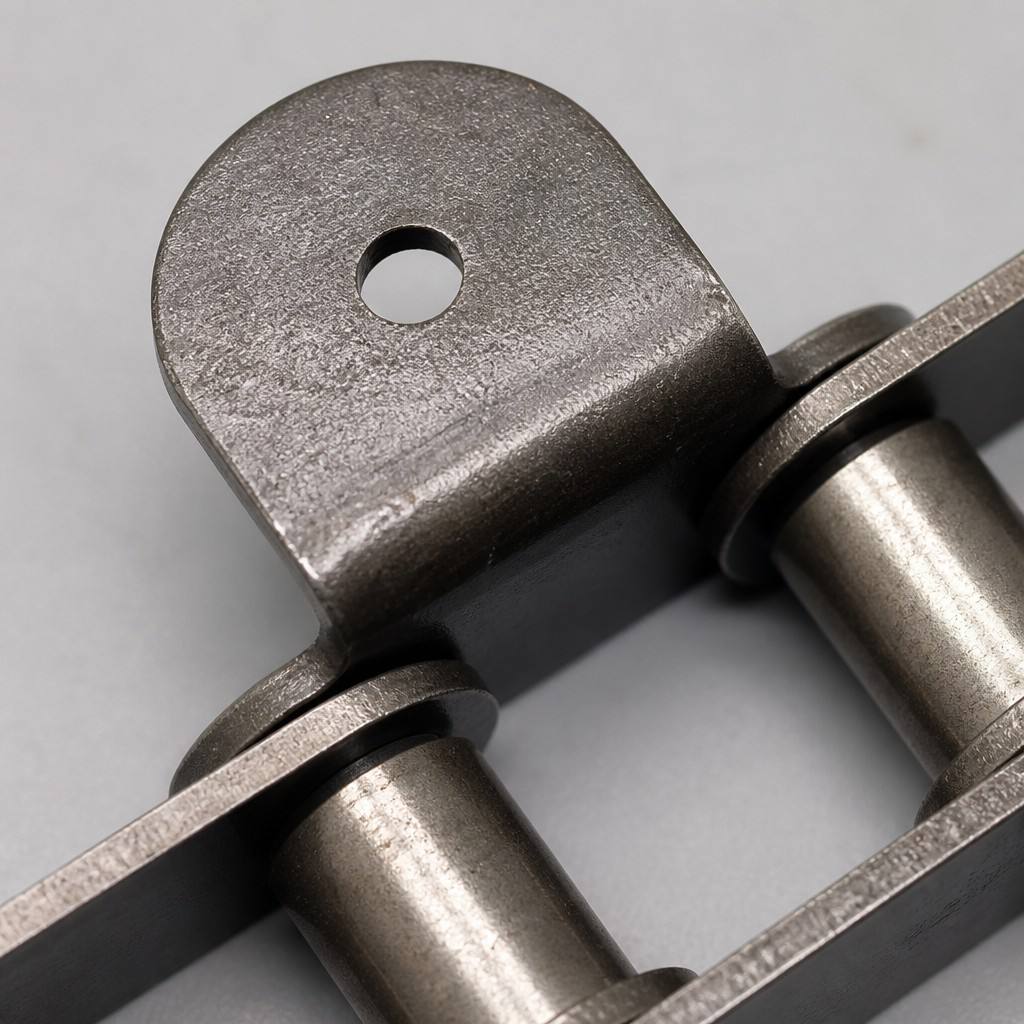

The attachment configuration should be selected according to the conveyor flight, slat, scraper or carrier design. Our technical team can assist with dimensional verification when customers provide the existing chain sample, sprocket information, equipment drawing or installation dimensions.

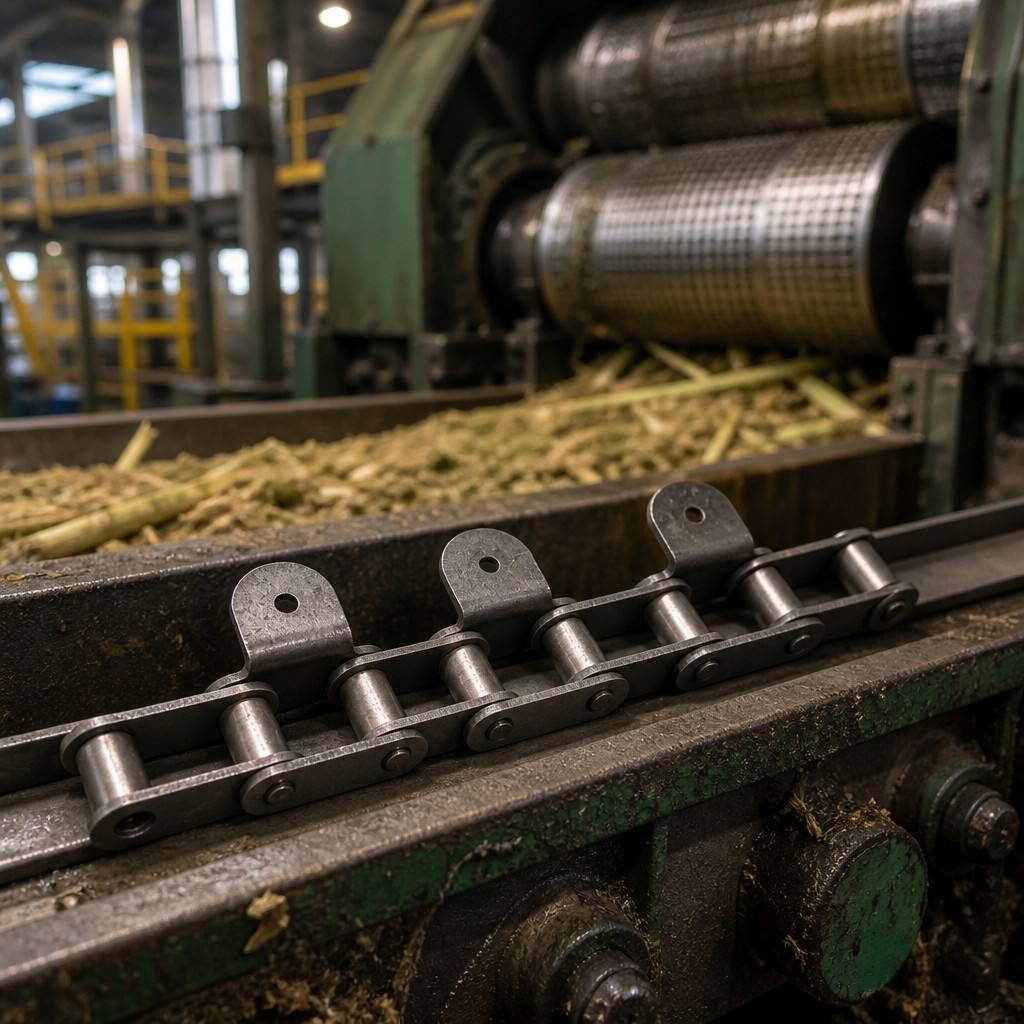

This conveyor chain is intended for material-handling systems used in sugar mills and related processing equipment. Typical applications include sugar cane conveying, cane feeding, transfer conveyors, scraper conveyors, carrier systems and other heavy-duty conveying sections where a robust attachment chain is required.
| Chain No. | B | F | W | E | d | T |
| mm | mm | mm | mm | mm | mm | |
| 09060 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| 09061 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| 1796 | 76.2 | 67 | 87.4 | 45 | 21 | 15 |
| GC09063 | 76.2 | 63.5 | 83 | 45 | 20 | 15.3 |
| SS1131 | 76.2 | 65.88 | 91.28 | 50.8 | 17.46 | 15.48 |
| DN2184 | 76.2 | 66.7 | 92.1/88.74 | 50.8/44 | 21 | 15 |
Tianjin Haorongshengye Electrical Equipment Co., Ltd. provides industrial chain products and customized supply solutions for machinery manufacturers, distributors, maintenance contractors and end users. We support standard replacement requirements as well as OEM projects based on customer drawings and technical specifications.
For reliable chain selection, please provide the chain number, required length, attachment form, operating environment, conveying material, working speed and sprocket details. These data help us confirm compatibility and prepare an accurate quotation.
| Information to Provide | Recommended Details |
| Chain model | 09060, 09061, 1796, GC09063, SS1131, DN2184 or another reference number |
| Attachment form | A, B, C, D or a customer drawing |
| Required quantity | Chain length, number of links or complete conveyor requirement |
| Application data | Conveyed material, load, speed and working environment |
| Technical documents | Existing sample, equipment drawing, sprocket information or photographs |
Contact us for a customized sugar mill conveyor chain solution and quotation.
