· Made to your gearbox drawing: gears, gear shafts and pinion shafts.
· Carburised and hardened to HRC 58-62 for high contact strength, with a tough core.
· Teeth ground after heat treatment for accuracy and low noise.
· Accuracy DIN 5 to DIN 9 according to the stage and duty.
· Parallel-shaft and right-angle industrial reducers
· Gear motors
· Hoist and crane gearboxes
· Mixer, conveyor and extruder drives
· Replacement gears for older gearboxes
Gearbox gears fail in two ways: surface pitting from contact stress, and tooth root breakage from bending. Carburising answers both: a high-carbon case hardened to HRC 58-62 resists pitting, while the low-carbon core stays tough enough to resist root cracks. Because carburising distorts the part, the teeth are ground afterwards to restore accuracy.
Helical gears carry more load and run quieter than spur gears of the same size because more teeth share the load. The cost is axial thrust on the bearings. Example of the geometry we check on every drawing: normal module 3, helix angle 15 deg, 20 and 61 teeth. Transverse module = 3 / cos 15 deg = 3.106 mm; pitch diameters 62.12 mm and 189.46 mm; centre distance 125.79 mm; ratio 3.05.
Gear load capacity is rated by the gearbox designer, typically to ISO 6336. We manufacture to the drawing and can supply hardness, case depth and tooth inspection reports.
| Item | Value |
| Type | Helical gears, spur gears, gear shafts |
| Material | 20CrMnTi, 20CrMo, 42CrMo, 40Cr |
| Heat treatment | Carburised and hardened HRC 58-62; quenched and tempered; induction hardened |
| Tooth finishing | Hobbing, shaping, grinding after heat treatment |
| Accuracy grade | DIN 5 to DIN 9 |
| Pressure angle | 20 deg standard; others to drawing |
| Supply basis | Drawing or sample |
| Worked example | Value |
| Normal module mn / helix angle | 3 mm / 15 deg |
| Teeth z1 / z2 | 20 / 61 |
| Pitch diameters | 62.12 / 189.46 mm |
| Centre distance | 125.79 mm |
| Ratio | 3.05 |

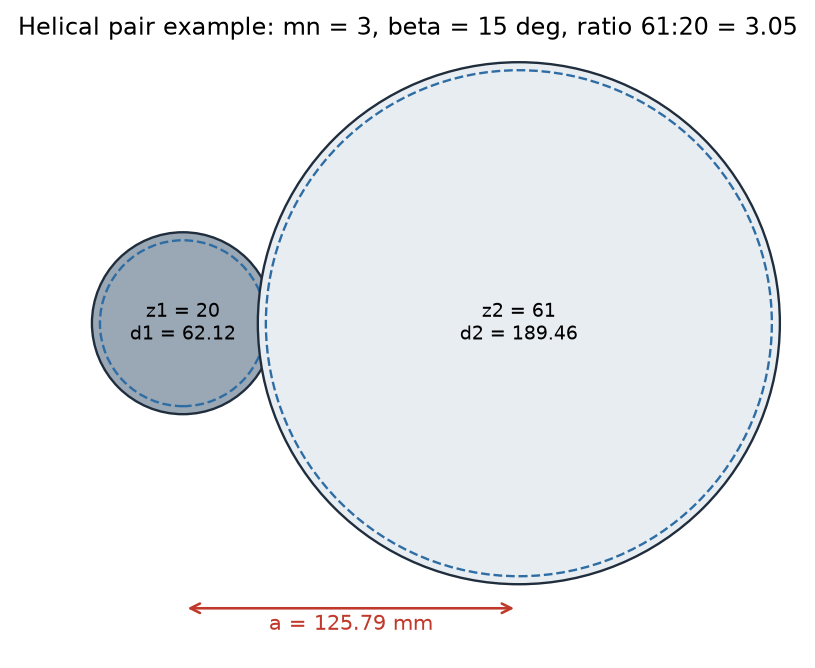

Pitch circles and centre distance of the example pair
· Case depth and hardness controlled to drawing, with reports.
· Grinding after heat treatment for quiet running.
· Copy service for gears without drawings (from sample measurement).
Applicable Industries
Gearbox and reducer manufacturers, mining and construction machinery, cranes, mixers, plastic and rubber machinery.
For drawings, samples or a quotation, send us your rack, pinion or gear specification and quantity.
